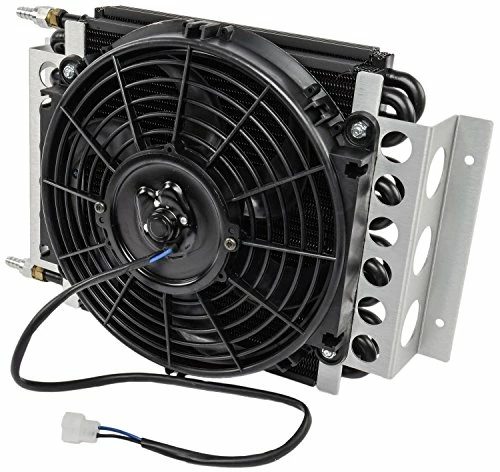

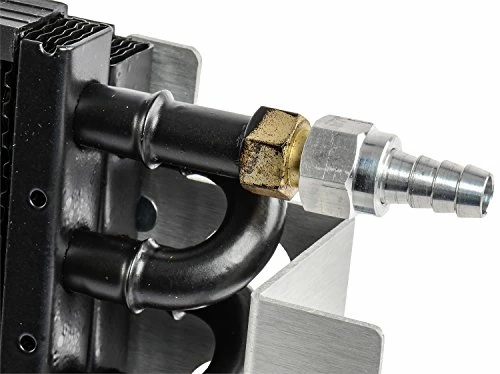

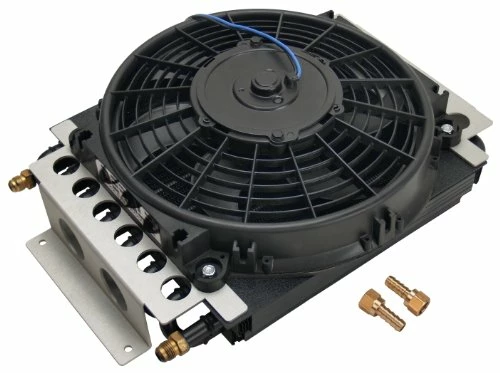

With its own air supply, this popular remote cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16 pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, built with -6AN male fittings and includes 2 each -6AN x 3/8 inch barb fittings. Designed for transmission, power steering and fuel cooling.
- Mounts anywhere space permits. Designed for transmission, power steering and fuel cooling.
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- 16 pass tube and fin cooler. Product dimensions – 15.75 x 11.5 x 5 inches
- Fit type: Vehicle Specific













turbodiesel97 –
This thing is ridiculous! I have it mounted in front of my radiator for my power steering cooler and it is so effective that my radiator fans don’t engage near as often and the LS under hood is almost 700 horsepower. I can’t believe the difference this has made on my power steering fluid and also on my coolant. The install was very easy, I made a simple bracket to fit my application and installed two -6 AN lines. Wiring was a breeze with a relay and a hookup to ignition power. Very nice quality especially for the price.
Rene Ramirez –
I bought this to make a crazy home brew air compressor after cooler. It was a little more than I wanted to spend but the documentation on it had a working/burst pressure that I could trust. Also the fan was reversible to go from pusher to puller. The instruction could be a bit better as it was a little confusing on the push/pull setup. The 6AN fittings made the change to compression fittings kind of fussy but everything you need is here especially if you dont have a speed shop that carries AN fittings/adapters. You will need an external 12vdc power supply if you are using this outside of an automotive application and it supposedly pulls 5.3 amps. I fused it for 8 and have a small 100w/12A power supply is more than sufficient. Heat exchange? The air temperature coming in is over 200F and the output about 90 so yeah IT WORKS.
eric –
Well built cooler..The only down fall is i had to make bracket to install it.I go weeling at Uwharrie forest in North Carolina and could not Mound it on the fram underneath my jeep to many rock climes there but i went weeling not to long ago and my trans did not over heat at all….by the way i have a jeep2010 3 inch lift.
GoingCustom –
zz454 with a th400. Trans overheated pulling trailer for the first time. I swapped out the “performance” trans cooler I had with this one and now the trans is much happier. I also installed the 180* thermostat which kicked the fan on/off when it should.Only reason I gave it 4 stars instead of 5 is due to instructions for wiring the fan relay are different than the instructions for wiring the thermostat. Aside from the two different instructions contradictingeach other, cooler works great. I cut the brackets to mount in the same place I had the other cooler.
F. R. A. T –
Fácil de instalar, muy buena inversión. Lo instalé en Toyota Land Cruiser Serie 100 año 2005.
T.G.Vaughn –
Great quality, I used this as an after cooler on my air compressor.
KB –
Stay tuned!
Rhane B. –
Highly recommend this cooler, i used it to help cool my transmission down and so far it has done very well. Very satisfied with it.
